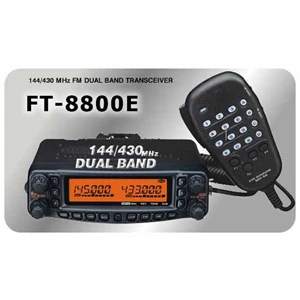

RIG YAESU FT-8800R/ E

Yaesu FT-8800E General Frequency Range: RX 108.000-520.000 MHz 700.000-999.995 MHz TX 144.000-146.000 MHz or ( 144.000-148.000 MHz) 430.000-440.000 MHz vagy ( 430.000-450.000 MHz) Frequency Steps: 5/ 10/ 12.5/ 15/ 20/ 25/ 50 kHz Operating Modes: F3, F2, F1 Antenna Impedance: 50 Ohm ( Antenna Duplexer built-in) Frequency Stability: ± 5 ppm ( – 10 ° C ~ + 60 ° C) Operating Temperature Range: – 20 ° C ~ + 60 ° C Supply Voltage: 13.8 VDC ( ± 15% ) , negative ground Current Consumption ( Approx.) : RX 0.5 A ( Squelched) TX 8.0 A ( 430 MHz) , 8, 5 A ( 144 MHz) Case Size 140 x 41, 5 x 168 mm ( w/ o knobs & connectors) Weight ( Approx.) : 1 kg Yaesu FT-8800E Transmitter Power Output: 50/ 20/ 10/ 5 W ( 144 MHz) 35/ 20/ 10/ 5 W ( 430 MHz) Modulation Type: Variable Reactance Maximum Deviation: ± 5 kHz Spurious Radiation: Better than – 60 dB Modulation Distortion: Less than 3% Microphone Impedance: 2 kOhm DATA Jack Impedance: 10 kOhm Yaesu FT-8800E Receiver Circuit Type: Double-conversion superheterodyne Intermediate Frequencies: 45.05 MHz/ 450 kHz ( Left band) , 47.25 MHz/ 450 kHz ( Right band) Sensitivity ( for 12dB SINAD) : Better than 0.2µ V Squelch Sensitivity: Better than 0.16 µ V Selectivity ( – 6dB/ – 60dB) : 12 kHz/ 30 kHz Maximum AF Output: 2 W @ 8 ? for 5% THD AF Output Impedance: 4-16 Ohm
